Steel FSB84 Series – 84CA Extended Service Bodies

Built for professionals who demand maximum storage capacity, structural strength, and long-term durability, the Steel FSB84 Series is Falcon’s extended 84CA platform engineered for serious commercial fleets.

Available in both Classic (40″ height) and Flip Top (42.5″ height) configurations, the FSB84 Series delivers expanded jobsite storage, reinforced galvanneal steel construction, and precision-built performance across its 134″ platform.

Crafted from heavy-duty galvanneal steel and supported by a formed 10-ga HR steel frame with controlled weld bead application, the FSB84 is engineered for structural rigidity and proper load distribution on 84″ CA chassis.

Heavy-Duty Steel Construction

• 12-ga galvanneal front, rear, and bed side walls
• Reinforced 14-ga wheel panels and bulkhead
• 16-ga galvanneal interior walls and doors
• Formed 10-ga HR steel structural frame
• 1/8″ HR treadplate cargo floor

Classic & Flip Top Configurations

• Classic: 40″ compartment height
• Flip Top: 42.5″ overall height with 18-ga tapered galvanneal lids and 0.063″ treadbrite overlays

Secure External Storage

• Flush-mounted 16-ga galvanneal doors

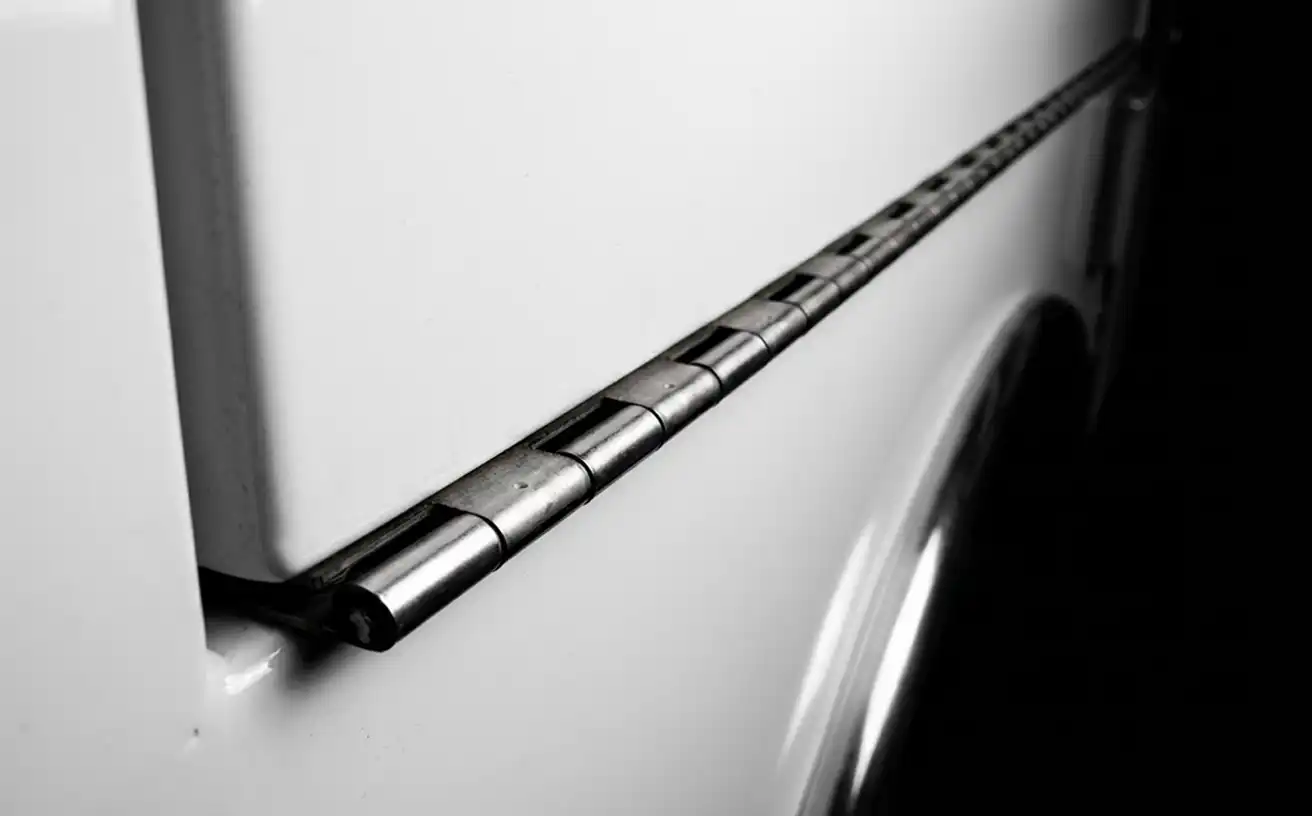

• Stainless bolt-on piano hinges
• Reinforced interior stiffeners
• Custom door rod guides

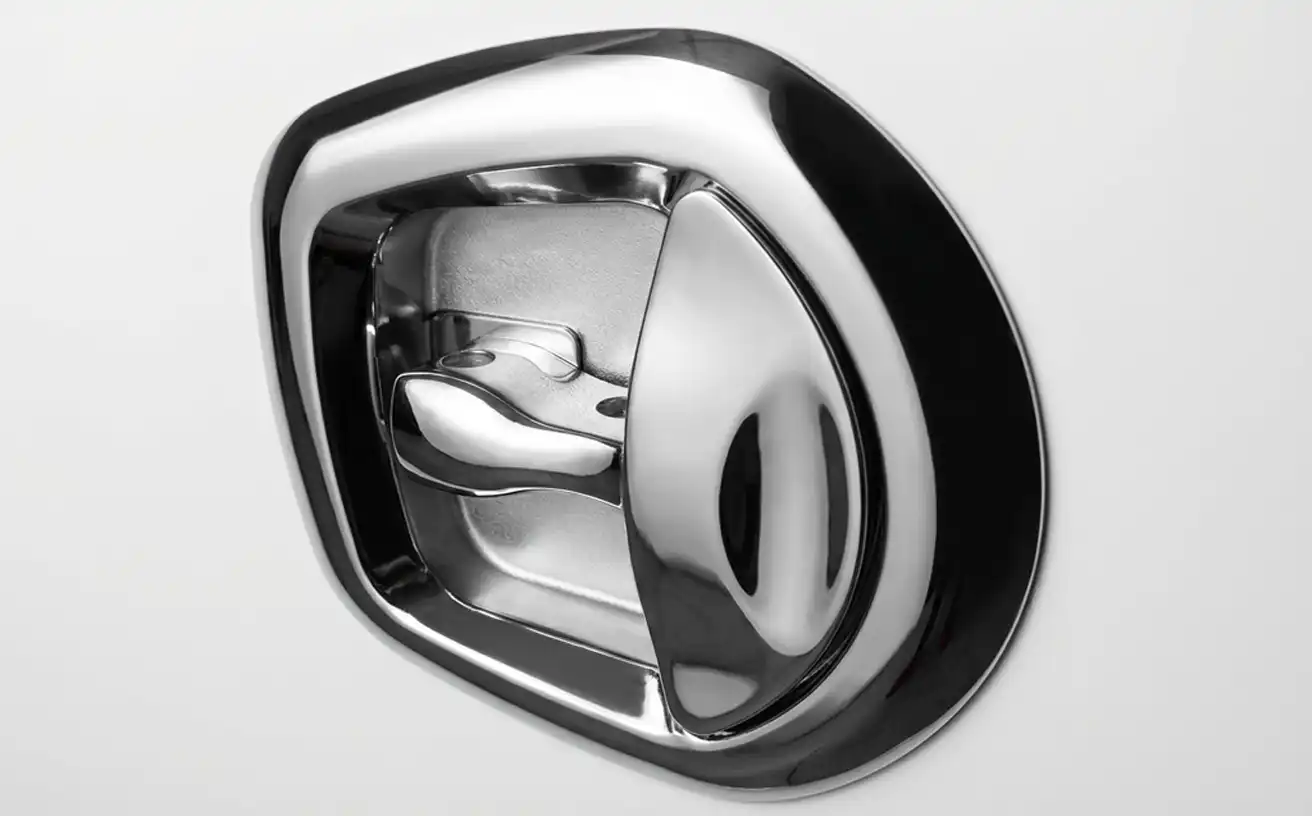

• Heavy-duty three-point whaletail latches

Integrated Universal Bumper (Standard)

• 14-ga galvanneal universal bumper
• Multi-Tow plug receptacle cutout
• Backup camera mounting brackets
• LED license plate lights
• Grip overlays with liner on steps

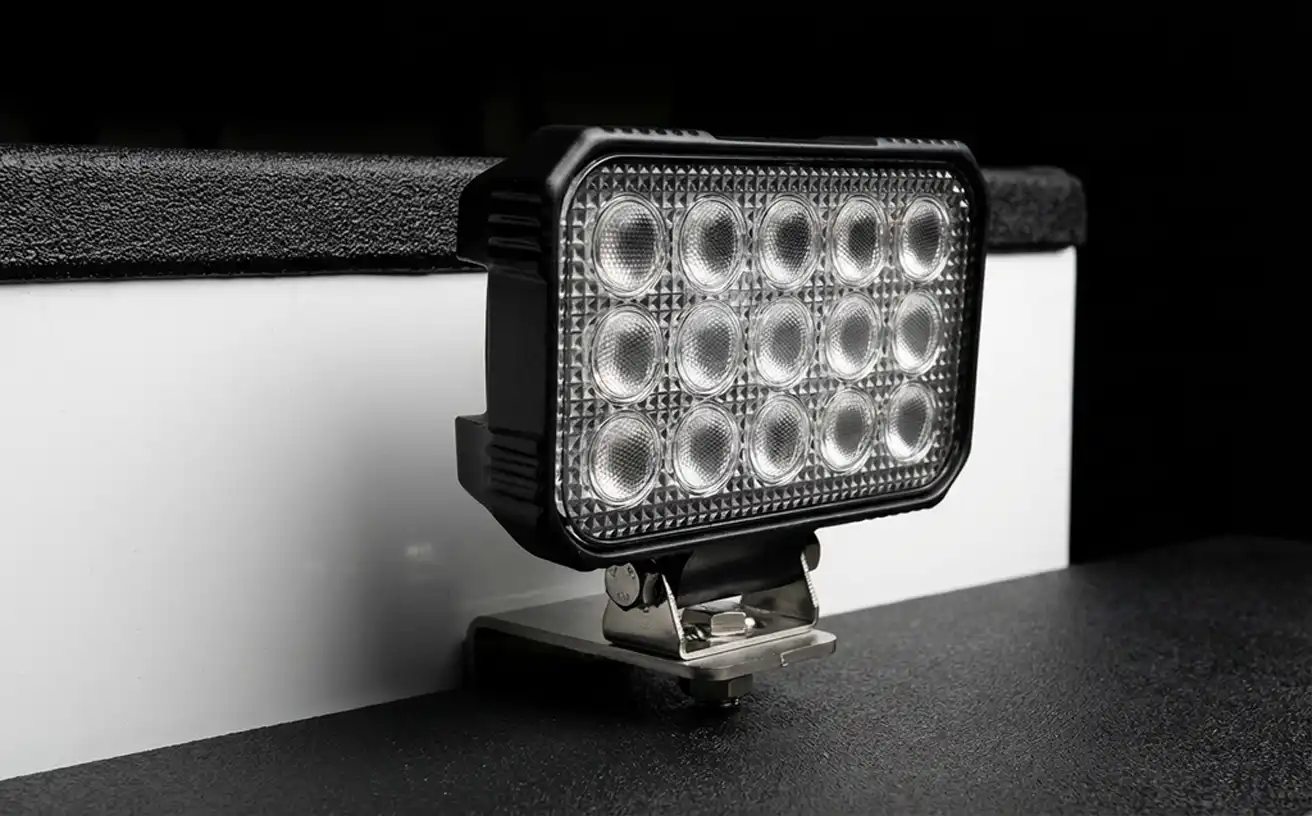

Commercial Lighting & Electrical

• (2) 6″ oval S/T/T, backup & strobe combination lights
• Strobe wiring routed to front streetside compartment
• Red, green, and amber ¾″ indicator lights
• LED compartment & bed lighting (Flip Top models)

Optimized Organization & Capacity

• 134″ overall body length
• 49.5″ cargo area width

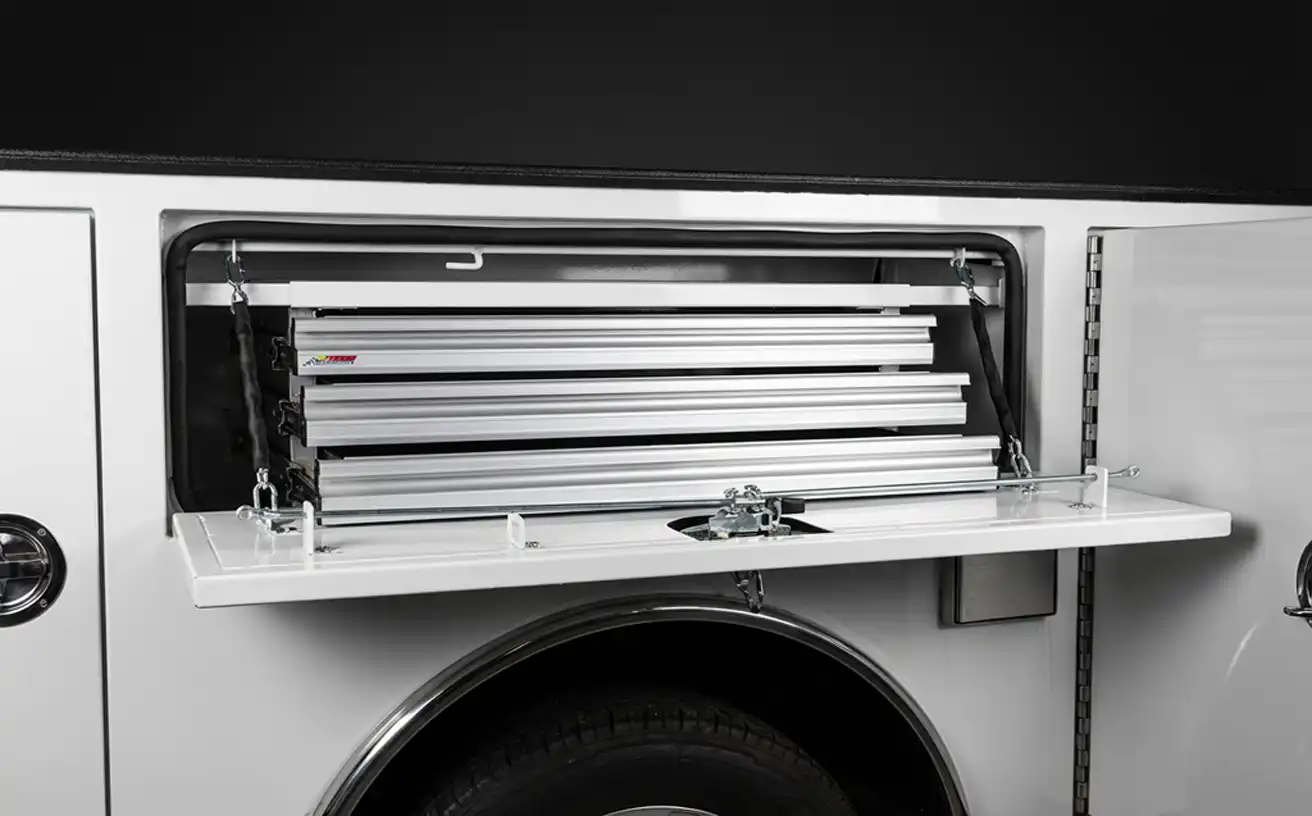

• Adjustable galvanized shelving and drawer systems

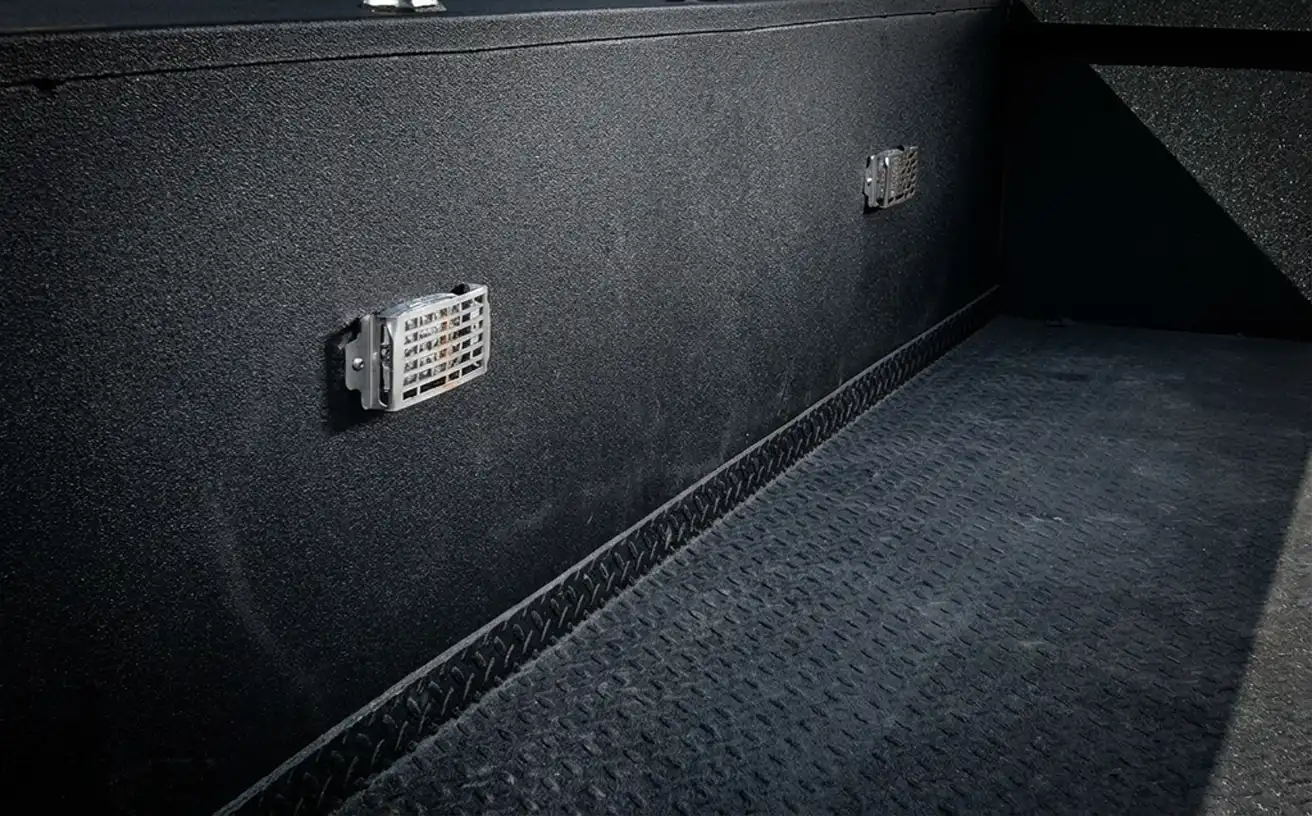

• Six (6) 6,000-lb rated bed tie-downs
• 12″ steel tailgate with treadbrite overlay

Built for Work. Designed for Results.

The Steel FSB84 Series is a purpose-built tool management system engineered to maximize usable storage, structural strength, and operational efficiency on 84CA chassis platforms.
